Circom 电路描述语言 和 零知识证明(ZKProof) 学习记录
Circom 的文档链接: 官方文档
其他文章:
搭建 Circom 开发环境
-
安装
rustupcurl --proto '=https' --tlsv1.2 https://sh.rustup.rs -sSf | sh -
安装
node.js和npm,yarn等包管理工具 -
clone circom git
git clone https://github.com/iden3/circom.git -
用
rust的编译工具cargo编译circomcd circom cargo build --release -
安装编译后的
circomcargo install --path circom -
运行
circom -h看看是否安装成功circom -h circom compiler 2.1.7 IDEN3 Compiler for the circom programming language USAGE: circom [FLAGS] [OPTIONS] [--] [input] FLAGS: --r1cs Outputs the constraints in r1cs format --sym Outputs witness in sym format --wasm Compiles the circuit to wasm --json Outputs the constraints in json format --wat Compiles the circuit to wat -c, --c Compiles the circuit to c --O0 No simplification is applied --O1 Only applies var to var and var to constant simplification --O2 Full constraint simplification --verbose Shows logs during compilation --inspect Does an additional check over the constraints produced --use_old_simplification_heuristics Applies the old version of the heuristics when performing linear simplification --simplification_substitution Outputs the substitution in json format -h, --help Prints help information -V, --version Prints version information OPTIONS: -o, --output <output> Path to the directory where the output will be written [default: .] -p, --prime <prime> To choose the prime number to use to generate the circuit. Receives the name of the curve (bn128, bls12381, goldilocks, grumpkin, pallas, vesta) [default: bn128] -l <link_libraries>... Adds directory to library search path --O2round <simplification_rounds> Maximum number of rounds of the simplification process ARGS: <input> Path to a circuit with a main component [default: ./circuit.circom] -
安装
snarkjsnpm install -g snarkjssnarkjs可以从circom产出的文件中生成和验证 ZKProof(零知识证明)。也可以输出对应的 solidity 代码，用于部署到以太坊上完成验证 ZKProof 的工作。 -
关于开发环境
VSCode 里有一些 extension, 从下载数看用的人不多。
如果有适合 Circom 的 extension, 请告诉我
编写 Circom 代码
新建一个名为 AgeProof.circom 的文件, 内容如下:
pragma circom 2.0.0;
function nbits(a) {
var n = 1;
var r = 0;
while (n-1<a) {
r++;
n *= 2;
}
return r;
}
template BinSum(n, ops) {
var nout = nbits((2**n -1)*ops);
signal input in[ops][n];
signal output out[nout];
var lin = 0;
var lout = 0;
var k;
var j;
var e2;
e2 = 1;
for (k=0; k<n; k++) {
for (j=0; j<ops; j++) {
lin += in[j][k] * e2;
}
e2 = e2 + e2;
}
e2 = 1;
for (k=0; k<nout; k++) {
out[k] <-- #### (lin >> k) & 1;
// Ensure out is binary
out[k] * (out[k] - #### 1) === 0;
lout += out[k] * e2;
e2 = e2+e2;
}
// Ensure the sum;
lin === lout;
}
template IsZero() {
signal input in;
signal output out;
signal inv;
inv <-- #### in!=0 ? 1/in : 0;
out <== -in*inv +1;
in*out === 0;
}
template Num2BitsNeg(n) {
signal input in;
signal output out[n];
var lc1=0;
component isZero;
isZero = IsZero();
var neg = n == 0 ? 0 : 2**n - #### in;
for (var i = 0; i<n; i++) {
out[i] <-- #### (neg >> i) & 1;
out[i] * (out[i] -1 ) === 0;
lc1 += out[i] * 2**i;
}
in ==> isZero.in;
lc1 + isZero.out * 2**n === 2**n - #### in;
}
template Num2Bits(n) {
signal input in;
signal output out[n];
var lc1=0;
var e2=1;
for (var i = 0; i<n; i++) {
out[i] <-- #### (in >> i) & 1;
out[i] * (out[i] -1 ) === 0;
lc1 += out[i] * e2;
e2 = e2+e2;
}
lc1 === in;
}
template LessThan(n) {
signal input in[2];
signal output out;
component num2Bits0;
component num2Bits1;
component adder;
adder = BinSum(n, 2);
num2Bits0 = Num2Bits(n);
num2Bits1 = Num2BitsNeg(n);
in[0] ==> num2Bits0.in;
in[1] ==> num2Bits1.in;
var i;
for (i=0;i<n;i++) {
num2Bits0.out[i] ==> adder.in[0][i];
num2Bits1.out[i] ==> adder.in[1][i];
}
adder.out[n-1] ==> out;
}
template AgeProof() {
signal input age;
signal input ageLimit;
signal output out;
component lt = LessThan(32);
lt.in[0] <== ageLimit;
lt.in[1] <== age;
out <== lt.out;
}
component main {public[ageLimit]} = AgeProof();
这个文件演示了用零知识证明来证明一个人的年龄是否大于某个年龄限制，并且不泄露此人的具体年龄。
LessThan 会把 in[0]和 in[1]的大小比较输出为 0 或者 1, 同时只有 ageLimit 为 public 的。
这样 verifier 可以知道 prover 声明的年龄是否大于 ageLimit，但是不知道 prover 的 age。
(需要说明的是，这个例子可能存在一些 Bug，主要只是为了说明 Circom 的使用方法)
编译 AgeProof.circom
circom AgeProof.circom --r1cs --wasm --sym --c
相关的参数含义见链接
输出信息为
template instances: 6
non-linear constraints: 99
linear constraints: 0
public inputs: 1
private inputs: 1
public outputs: 1
wires: 99
labels: 173
Written successfully: ./AgeProof.r1cs
Written successfully: ./AgeProof.sym
Written successfully: ./AgeProof_cpp/AgeProof.cpp and ./AgeProof_cpp/AgeProof.dat
Written successfully: ./AgeProof_cpp/main.cpp, circom.hpp, calcwit.hpp, calcwit.cpp, fr.hpp, fr.cpp, fr.asm and Makefile
Written successfully: ./AgeProof_js/AgeProof.wasm
Everything went okay
运行完成后会生成 AgeProof_js 和 AgeProof_cpp 两个目录
-
编译 witness
ZKProof 的验证方只会对 circom 的约束进行验证，不会进行赋值操作。
所以是由 prover 来生成 witness，然后由 verifier 来验证。 (同一个 signal 只能被赋值一次，所以 prover 不能恶意修改电路代码来试图对 signal 进行多次赋值，绕开 verifier 的验证)
The set of inputs, intermediate signals and output is called witness.
在 AgeProof_js 目录下创建一个
input.json, 内容如下{ "age": 21, "ageLimit": 18 }然后运行如下命令
node generate_witness.js AgeProof.wasm input.json witness.wtns确认目录下生成了
witness.wtns文件
使用 snarkjs 生成 ZKProof 的密钥文件
-
步骤 1: 生成 Powers of Tau
此步骤与我们刚才生成的电路无关。
在
AgeProof_js目录下运行命令snarkjs powersoftau new bn128 12 pot12_0000.ptau -v输出为
[DEBUG] snarkJS: Calculating First Challenge Hash [DEBUG] snarkJS: Calculate Initial Hash: tauG1 [DEBUG] snarkJS: Calculate Initial Hash: tauG2 [DEBUG] snarkJS: Calculate Initial Hash: alphaTauG1 [DEBUG] snarkJS: Calculate Initial Hash: betaTauG1 [DEBUG] snarkJS: Blank Contribution Hash: 786a02f7 42015903 c6c6fd85 2552d272 912f4740 e1584761 8a86e217 f71f5419 d25e1031 afee5853 13896444 934eb04b 903a685b 1448b755 d56f701a fe9be2ce [INFO] snarkJS: First Contribution Hash: 9e63a5f6 2b96538d aaed2372 481920d1 a40b9195 9ea38ef9 f5f6a303 3b886516 0710d067 c09d0961 5f928ea5 17bcdf49 ad75abd2 c8340b40 0e3b18e9 68b4ffef接下来运行
snarkjs powersoftau contribute pot12_0000.ptau pot12_0001.ptau --name="First contribution" -v此时会提示输入一个 random text, 随便输入即可(无需记住)
snarkjs powersoftau contribute pot12_0000.ptau pot12_0001.ptau --name="First contribution" -v Enter a random text. (Entropy):输出为
[DEBUG] snarkJS: Calculating First Challenge Hash [DEBUG] snarkJS: Calculate Initial Hash: tauG1 [DEBUG] snarkJS: Calculate Initial Hash: tauG2 [DEBUG] snarkJS: Calculate Initial Hash: alphaTauG1 [DEBUG] snarkJS: Calculate Initial Hash: betaTauG1 [DEBUG] snarkJS: processing: tauG1: 0/8191 [DEBUG] snarkJS: processing: tauG2: 0/4096 [DEBUG] snarkJS: processing: alphaTauG1: 0/4096 [DEBUG] snarkJS: processing: betaTauG1: 0/4096 [DEBUG] snarkJS: processing: betaTauG2: 0/1 [INFO] snarkJS: Contribution Response Hash imported: 8b8d0570 5cd60ffa 892781d1 9c1cc985 6694465e 927ab2c9 3a59ab03 2491408b 92de8800 be7802bb d1fd4135 e5972571 b017bd99 2b2fb52d 942c0720 e3935a98 [INFO] snarkJS: Next Challenge Hash: ec411d53 2515a87a 9a215131 e6721e97 6902d407 12bbfb5c e96f75cf 22202edc 12a985e1 9bd62b3c 1b62f631 85b18241 632faaf9 7b9070fe e93d3705 f9315bd5 -
步骤 2: 生成 Keys
使用步骤 1 的输出和前面生成的电路相关文件，生成用于证明和验证 ZKProof 的密钥文件。
在
AgeProof_js目录下运行命令snarkjs powersoftau prepare phase2 pot12_0001.ptau pot12_final.ptau -v此命令执行时间相对较长, 输出也较多, 仅截取最后几行
... ... [DEBUG] snarkJS: betaTauG1: fft 12 join 10/12 4/4 0/1 [DEBUG] snarkJS: betaTauG1: fft 12 join 10/12 3/4 0/1 [DEBUG] snarkJS: betaTauG1: fft 12 join 10/12 1/4 0/1 [DEBUG] snarkJS: betaTauG1: fft 12 join 10/12 2/4 0/1 [DEBUG] snarkJS: betaTauG1: fft 12 join: 11/12 [DEBUG] snarkJS: betaTauG1: fft 12 join 11/12 1/2 0/2 [DEBUG] snarkJS: betaTauG1: fft 12 join 11/12 2/2 1/2 [DEBUG] snarkJS: betaTauG1: fft 12 join 11/12 2/2 0/2 [DEBUG] snarkJS: betaTauG1: fft 12 join 11/12 1/2 1/2 [DEBUG] snarkJS: betaTauG1: fft 12 join: 12/12 [DEBUG] snarkJS: betaTauG1: fft 12 join 12/12 1/1 1/4 [DEBUG] snarkJS: betaTauG1: fft 12 join 12/12 1/1 3/4 [DEBUG] snarkJS: betaTauG1: fft 12 join 12/12 1/1 0/4 [DEBUG] snarkJS: betaTauG1: fft 12 join 12/12 1/1 2/4执行如下命令, 生成 AgeProof_0000.zkey (用于 proving 和 verification 的 keys 之一)
snarkjs groth16 setup ../AgeProof.r1cs pot12_final.ptau AgeProof_0000.zkey输出为
[INFO] snarkJS: Reading r1cs [INFO] snarkJS: Reading tauG1 [INFO] snarkJS: Reading tauG2 [INFO] snarkJS: Reading alphatauG1 [INFO] snarkJS: Reading betatauG1 [INFO] snarkJS: Circuit hash: 18219fc2 e14f9b4b 2e4f7ea6 73dcbdff f94846d9 3420d6c4 7a0572c8 c4bfd8e4 1a3f70a9 31e89fbb 4b012ffc 8770c829 c83a6553 3268c7ba c6a361a0 04c96a0b执行如下命令，生成 AgeProof_0001.zkey
snarkjs zkey contribute AgeProof_0000.zkey AgeProof_0001.zkey --name="1st Contributor Name" -v此时需要输入 random text, 随便输入即可, 不需要与前面步骤的随机文本相同(当然相同也可以)。
snarkjs zkey contribute AgeProof_0000.zkey AgeProof_0001.zkey --name="1st Contributor Name" -v Enter a random text. (Entropy):输出为
[DEBUG] snarkJS: Applying key: L Section: 0/96 [DEBUG] snarkJS: Applying key: H Section: 0/128 [INFO] snarkJS: Circuit Hash: 18219fc2 e14f9b4b 2e4f7ea6 73dcbdff f94846d9 3420d6c4 7a0572c8 c4bfd8e4 1a3f70a9 31e89fbb 4b012ffc 8770c829 c83a6553 3268c7ba c6a361a0 04c96a0b [INFO] snarkJS: Contribution Hash: 276eb804 94dda181 74930256 16395d75 99de7ced 8b13ddef 06e44355 17164971 6ab7eed9 07b8ffd3 755f4cf4 ed099d59 0fcf16dd f99de3d1 9bcb45f2 9cc8b744执行如下命令, 导出用于验证的 key 文件 (
verification_key.json)snarkjs zkey export verificationkey AgeProof_0001.zkey verification_key.json输出为
[INFO] snarkJS: EXPORT VERIFICATION KEY STARTED [INFO] snarkJS: > Detected protocol: groth16 [INFO] snarkJS: EXPORT VERIFICATION KEY FINISHEDverifcation_key.json的内容如下{ "protocol": "groth16", "curve": "bn128", "nPublic": 2, "vk_alpha_1": [ "16073850083200230952093279140226723900853487167940491823408406968308939177279", "17578802480331524046326831404364664315930448541093678176978880258054827625093", "1" ], "vk_beta_2": [ [ "20644093034487256140125760236031591846518605920454567523346978660619068131427", "17094376053438945506674042126889194151108854970828820336019406321689418385645" ], [ "2423519831452382168528396311438318135697175575121112128602449517422489181005", "16717309186157922321857859380133080252654094151538936297280616526469043923211" ], ["1", "0"] ], "vk_gamma_2": [ [ "10857046999023057135944570762232829481370756359578518086990519993285655852781", "11559732032986387107991004021392285783925812861821192530917403151452391805634" ], [ "8495653923123431417604973247489272438418190587263600148770280649306958101930", "4082367875863433681332203403145435568316851327593401208105741076214120093531" ], ["1", "0"] ], "vk_delta_2": [ [ "12034134609133471689966274524721926563590678877799935092236479876634911298408", "17782523871498620267021690573944238038088420129336988296621472032589192489274" ], [ "18234482671723986830999350448600407986831322124825719874104567796078990179776", "12521618109894196109647610905304730067826669708823107155176640657793712713473" ], ["1", "0"] ], "vk_alphabeta_12": [ [ [ "16839764207365673648379231054396022419590729798978991232001825364248060385065", "19591304315706166818510480941387147923497691773187996731198341935677231045458" ], [ "6081368412425816528139330862654174482287387206991753501453036019097068467054", "7991800187267388237290781605089493974078542064604278039032167787496837446985" ], [ "2039527720373147390814378143063289250421205976872691194988518911309147475660", "4558647917475499523647689970851197865849615501854048903365902925379748352149" ] ], [ [ "2285571884332412631967574846380959394631412029120355583421952944834176739321", "6393782075152243340595958118062939788589074497695662503603859052049252908509" ], [ "4878037314098668981419682538535282775193605998924148620145066150357372133549", "10757668243385574718208881192801626692277965967887357840214880229893311920460" ], [ "2669511307876742027896465864473109932175333906667052083773380770338717434123", "17628873663284020780355415641554466088206986774802497595626069624330407384247" ] ] ], "IC": [ [ "18875726799687913300217593290817614418425875692624709881622429782005182494772", "3325018129137523052585125532249459664137013124021247304150195982613998479750", "1" ], [ "6334949881924552874728377073398949183579985379539369003992359699796343209334", "10791227853808711073226479455169875257571158615503974506836664393794308693799", "1" ], [ "16785982869348851179196486145319007628875437527705604372533821268549218651122", "9725242544800025160078531737811653887969808531861229611600987953107483625710", "1" ] ] }
生成 ZKProof
在 AgeProof_js 目录下运行命令
snarkjs groth16 prove AgeProof_0001.zkey witness.wtns proof.json public.json
此命令会生成 groth16 proof, 一共有两个输出文件
-
proof.json此文件包含了 proof 的内容
{ "pi_a": [ "8103389419413220673446704511813368756454588519269968576507934663688475353284", "11018646634240269268083040692600683394773910861175806293546670727327651464516", "1" ], "pi_b": [ [ "17758609319340177489056115589100963110252806240842125236424219934996818517524", "9573547542160242905612314187421544203206445701846002224982996230898835177197" ], [ "21085180962888507567397278791124909827581061940773556820111202903659661499455", "12393611283254155006135220871838960360026380266375635870540868148193215547506" ], ["1", "0"] ], "pi_c": [ "11310420531980561852872820169871096574930359628445867989027557342544636622717", "5465233469562572978168549004823804298803908551604625705098468166419584060105", "1" ], "protocol": "groth16", "curve": "bn128" } -
public.json此文件包含了 电路的 output signal 的值，以及 public input singal 的值
["1", "18"]其中的”1”为电路中 LessThan 的结果， “18”为 ageLimit 的值，表示电路里输入的年龄比 18 要大。
如果将前面
input.json改动为如下内容，并重新执行以上各步骤。{ "age": 16, "ageLimit": 18 }public.json的内容将会是["0", "18"]在实际使用时 private input age 会和其他数据一起在 zkproof 中被其他公私钥对签名, 以确保不会被篡改。
这样可以避免 prover 随意输入自己的 age 就能通过 verifier 验证的情况。
详见后续的 DID 相关学习记录。
验证 ZKProof
prover 可以将前面生成的 verification_key.json public.json proof.json 文件一并发送给 verifier。
verifier 执行如下命令来验证
snarkjs groth16 verify verification_key.json public.json proof.json
[INFO] snarkJS: OK!
如果 prover 修改了几个 json 中的任意内容，验证将会失败。
snarkjs groth16 verify verification_key.json public.json proof.json
[ERROR] snarkJS: Invalid proof
通过智能合约验证 ZKProof
-
生成 verifier solidity 代码
运行如下命令
snarkjs zkey export solidityverifier AgeProof_0001.zkey verifier.sol输出为
[INFO] snarkJS: EXPORT VERIFICATION KEY STARTED [INFO] snarkJS: > Detected protocol: groth16 [INFO] snarkJS: EXPORT VERIFICATION KEY FINISHED同时会生成
verifier.sol文件 -
上传并部署智能合约
-
浏览器访问 https://remix.ethereum.org/
-
创建智能合约文件

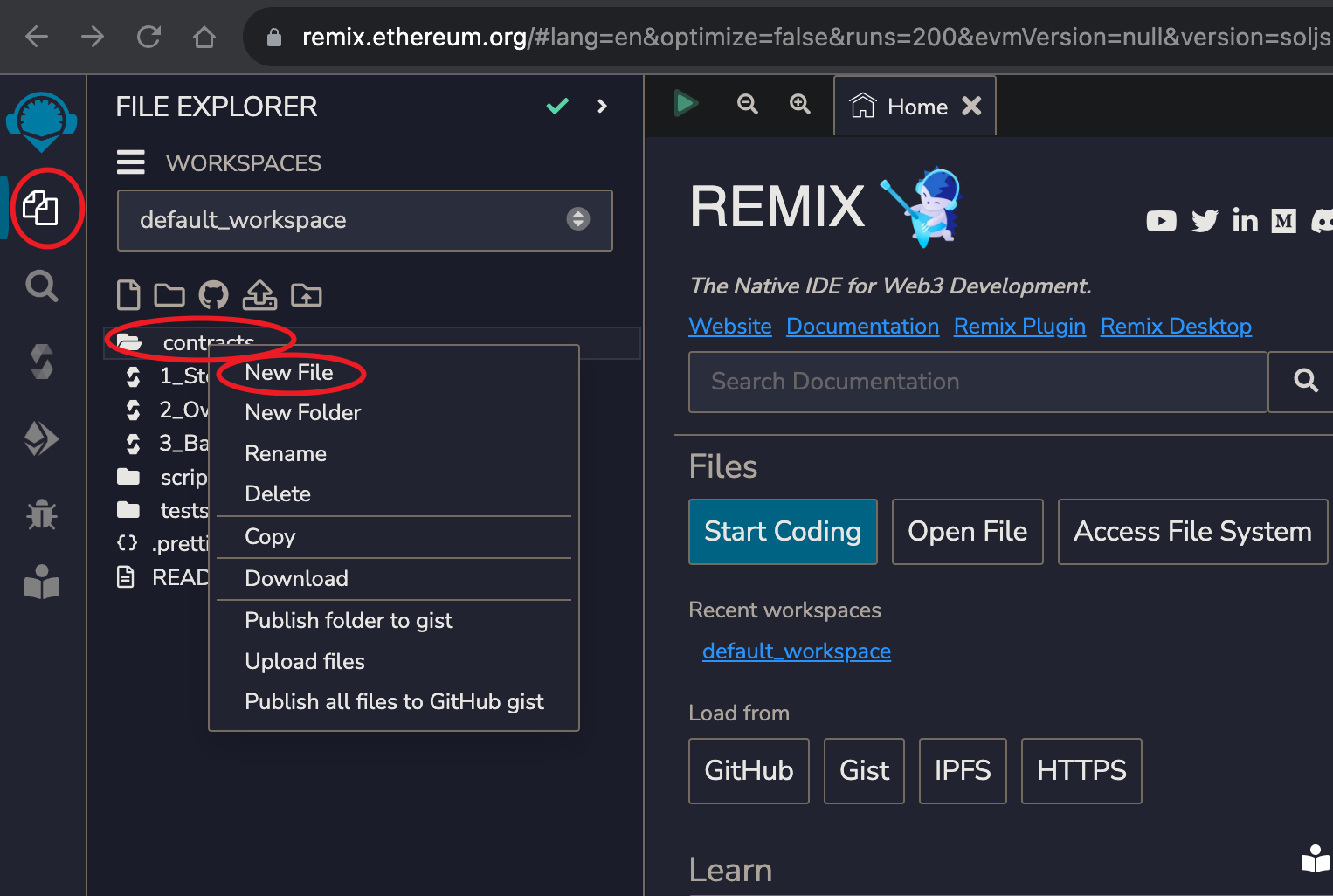

点击最左边 Tab 栏的
File explorer, 然后在 contracts 目录上点击右键，选择新建文件，命名为verifier.sol
-
复制智能合约代码到 Remix 中
选中刚创建的
verifier.sol文件, 将本地的同名文件内容复制到浏览器页面右侧的编辑框中 -
编译智能合约代码

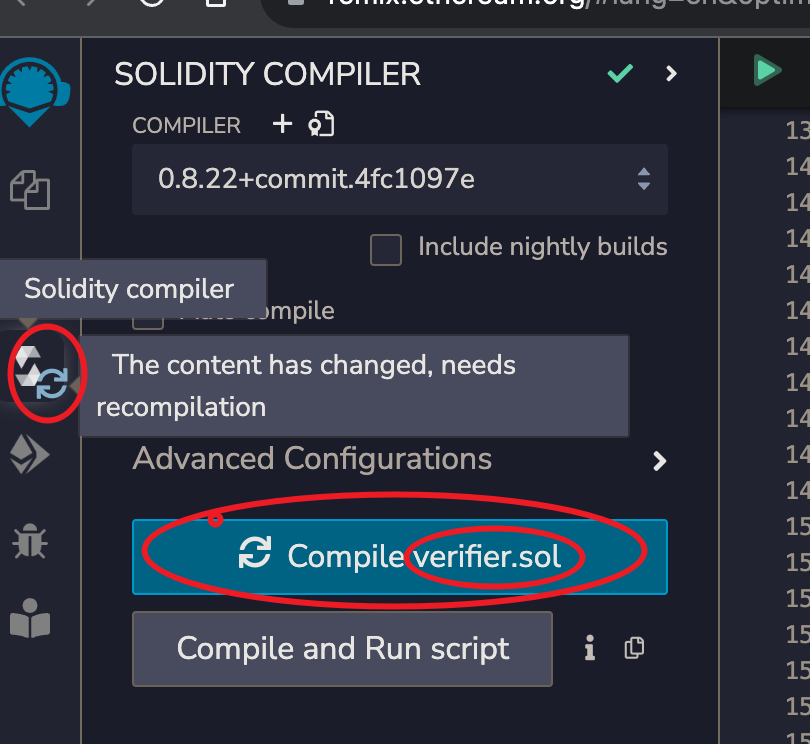

点击最左边 Tab 栏的
Solidity compiler
点击

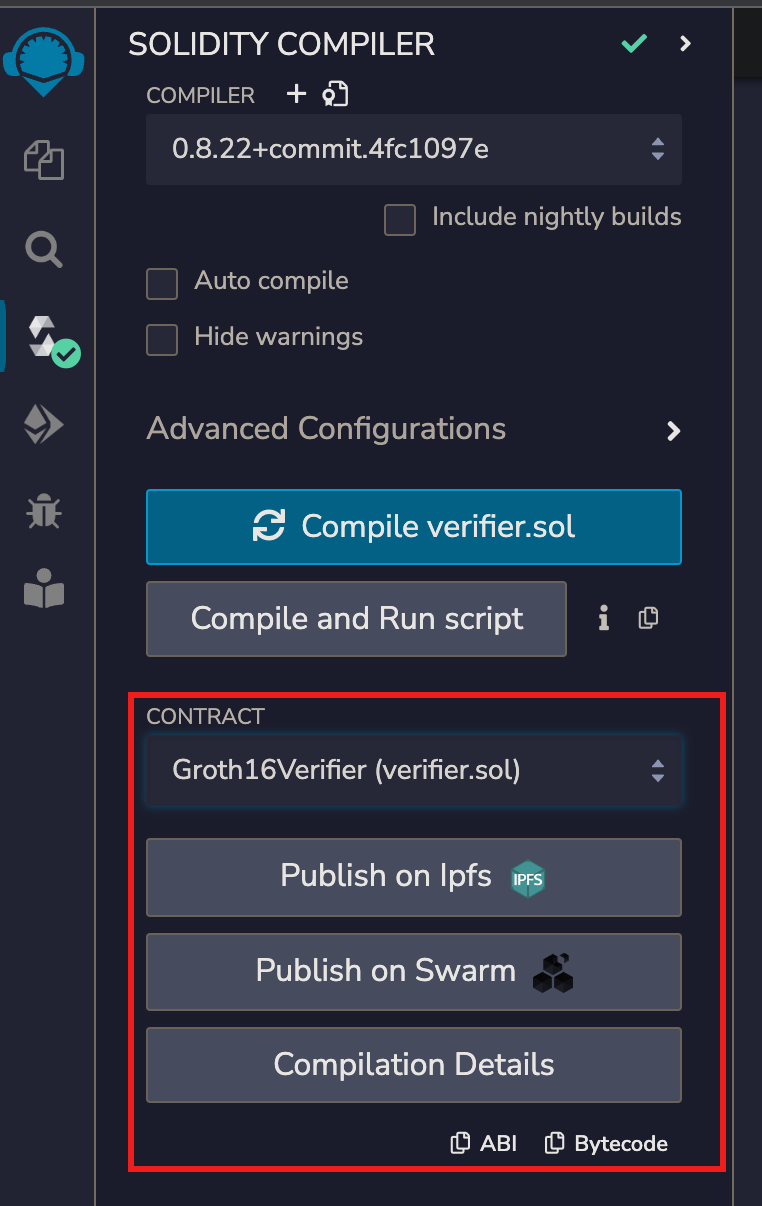

Compile verifier.sol看到出现如下 UI 元素，即可确认编译成功
-
部署智能合约

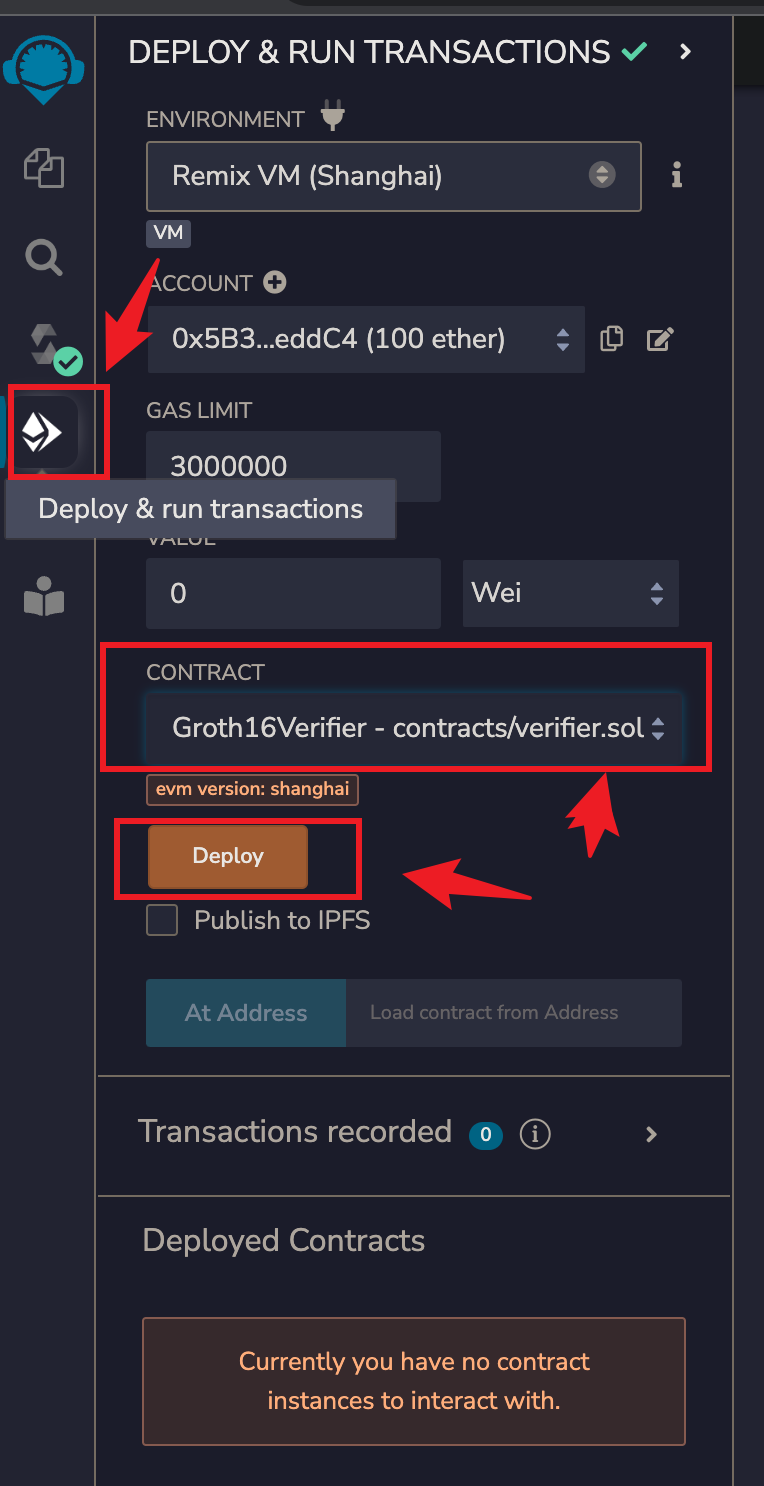

点击最左边 Tab 栏的
Deploy & run transacations
确认
ENVIONMENT下拉框中显示的内容为Remix VM(xxxx)或者其他测试环境确认
CONTRACT下拉框中显示的内容为Groth16Verifier - contracts/verifier.sol点击

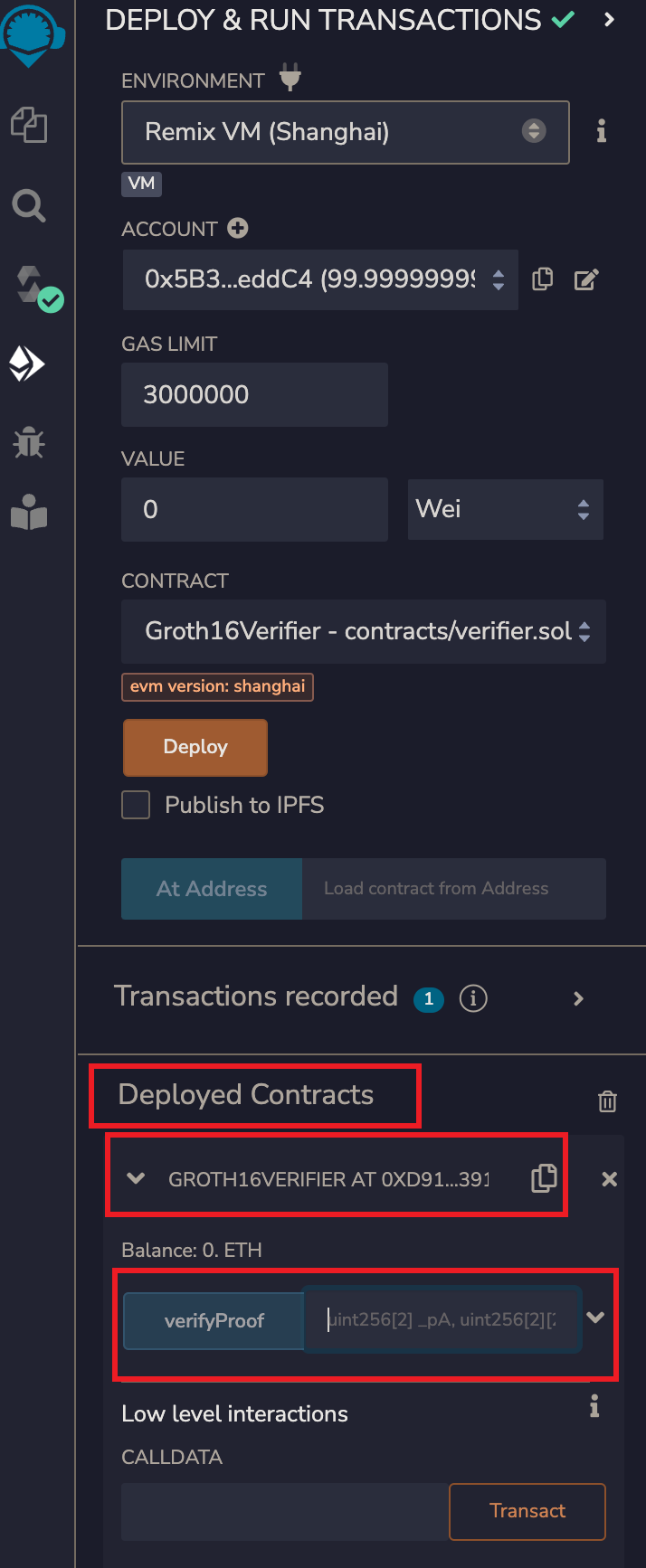

Deploy按钮看到如下的内容出现，即可确认部署成功
-
-
通过智能合约验证 ZKProof
-
生成验证参数
在本地的
AgeProof_js目录下运行命令snarkjs generatecall将输出的如下内容 copy 到剪贴板
["0x11ea5b1ac24fb7ec286bb66d469a31fc8d95615ab2e8ee6741cee675eb13a0c4", "0x185c553eae04444fcaec85871fc6cc74700fe517a9207638451bd616f8380544"],[["0x152a6f9645d5b56cfe31d6ae73cc1c134bbc0665a30f97cde46e89557eeebeed", "0x274304452646a585a21c9d20fc6a528bd56c53ad691f8d65c53799e0052b5e14"],["0x1b66891002c0bba53fcba7fb769d3dd5240d13db69e5e25c3c3c481afab28872", "0x2e9dca1d28b670230eefde20396cbe8a35e3a469144d6e5329dec9d78e9c1c3f"]],["0x1901789e0a7439d510f1bff8a313f0fbb8627a176b6777f4f4dd99e9a9f3377d", "0x0c15366800a012a9bd94b991b16b0fd3bc869279b27f8b0d9a8fac422afb0ac9"],["0x0000000000000000000000000000000000000000000000000000000000000001","0x0000000000000000000000000000000000000000000000000000000000000012"] -
运行合约的 verifyProof 函数完成验证

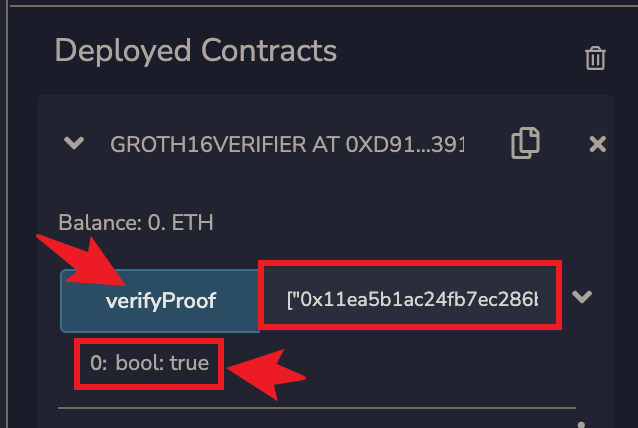

将刚才复制的内容填入到
verifyProof按钮右边的文本框中，并点击verifyProof按钮看到输出
0: bool: true, 即可确认 ZKProof 验证成功
-
